Technical Specifications
| PARTICULAR | SCR 1325 EXCEL | SCR 1325 PLUS | SCR 1325 PRIME |
|---|---|---|---|
| X WORKING AREA | 1300 MM | 1300 MM | 1300 MM |
| Y WORKING AREA | 2500 MM | 2500 MM | 2500 MM |
| Z WORKING AREA | 300 MM | 300 MM | 300 MM |
| X Y TRANSMISSION | TIMING BELT WITH PULLEY, Z BALL SCREW | PLANETARY GEARBOX | PLANETARY GEARBOX |
| TABLE STRUCTURE | HEAVY DUTY | HEAVY DUTY | HEAVY DUTY |
| POWER SUPPLY | 415 AC/3PHASE | 415 AC/3PHASE | 415 AC/3PHASE |
| TABLE SURFACE | T SLOT TABLE (ALUMINIUM) | T SLOT TABLE (ALUMINIUM) | T SLOT TABLE (ALUMINIUM) |
| CUTTING TOOL DIAMETER | 3 MM TO 16 MM | 3 MM TO 16 MM | 3 MM TO 16 MM |
| MAX. RAPID TRAVEL SPEED | 35,000 MM/MIN | 35,000 MM/MIN | 35,000 MM/MIN |
| MAX WORKING SPEED | 20,000 MM/MIN | 20,000 MM/MIN | 20,000 MM/MIN |
| SPINDLE MOTOR | 6 KW (AIR COOLED) | 6 KW (AIR COOLED) | 6 KW (AIR COOLED) |
| GUIDE SQUARE RAIL AND BALL SCREW | 25 MM AND 25 MM BALL SCREW | 25 MM AND 25 MM BALL SCREW | 25 MM AND 25 MM BALL SCREW |
| SPINDLE SPEED | 0 - 18000 RPM/MIN | 0 - 18000 RPM/MIN | 0 - 18000 RPM/MIN |
| DRIVE MOTOR | STEPPER MOTOR | SERVO MOTOR | FULLY SERVO MOTOR |
| CONTROLLER | RICHAUTO A11 | NK105 G2 | NK105 G2 |
| OILING SYSTEM | MANUAL (LEVER PULLING) | MANUAL (LEVER PULLING) | MANUAL (LEVER PULLING) |
| WEIGHT | 1000 KG APPROX | 1100 KG APPROX | 1200 KG APPROX |
| COMPUTER INTERFACE | USB | USB | USB |

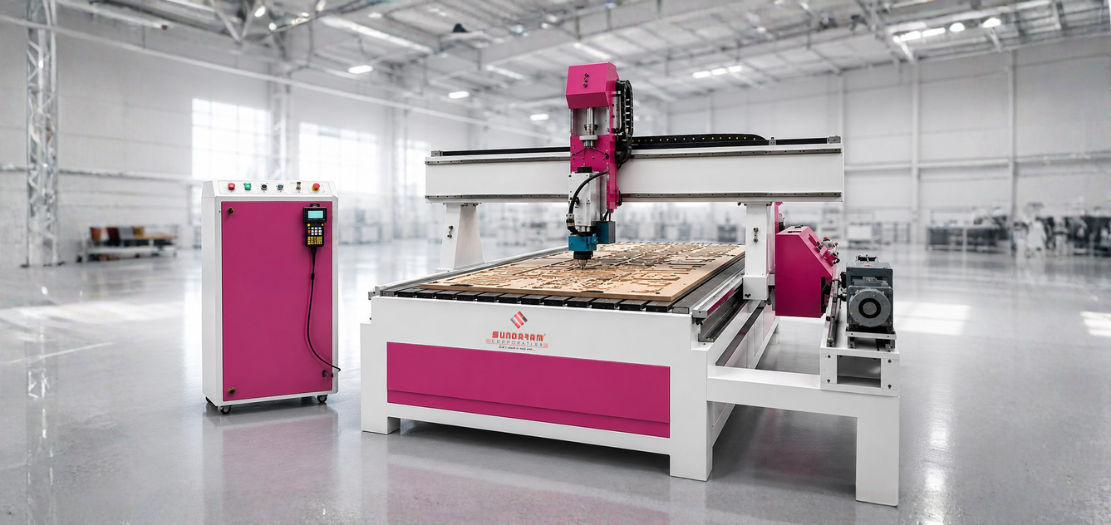

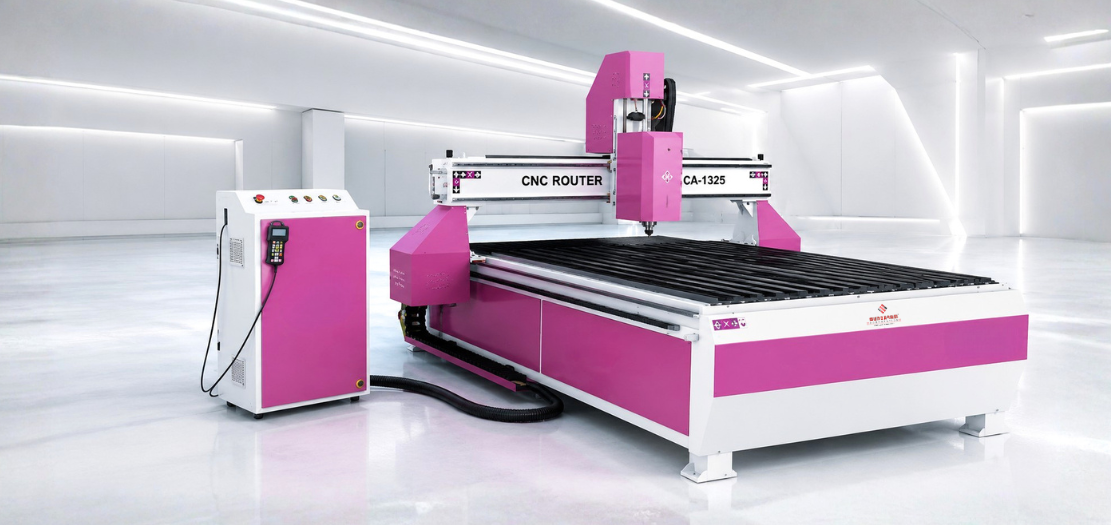

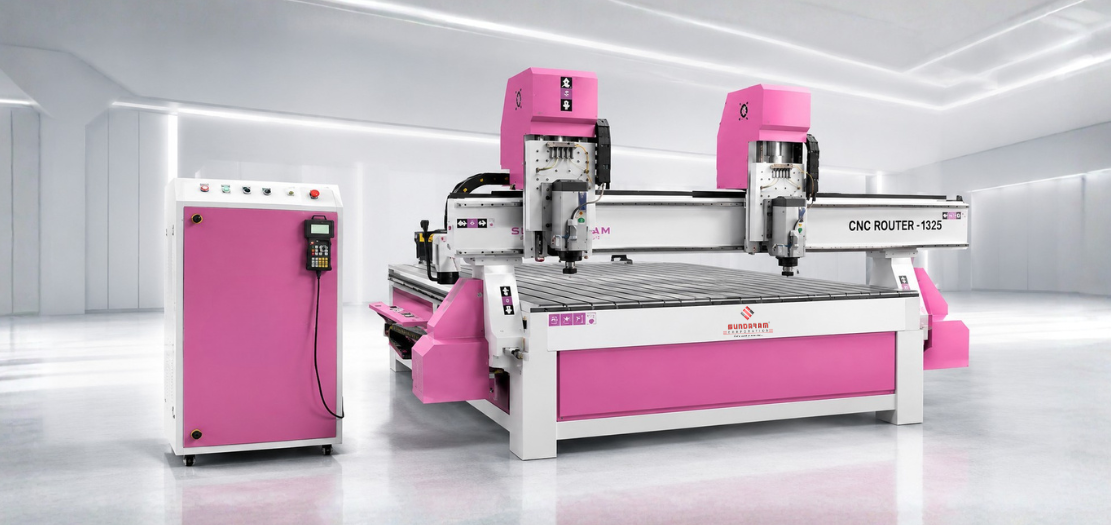

C.N.C Router & Laser Machine - Overview
Built with a rigid steel frame, high-speed spindle, and advanced motion control system, the CNC Router Machine ensures smooth operation, minimal vibration, and consistent dimensional accuracy. It is suitable for producing furniture components, door panels, decorative items, cabinets, signage, and customized woodwork with repeatable precision.
The machine supports multiple tool heads, automatic tool change options (based on model), and user-friendly software integration for designing and programming intricate patterns, curves, and 3D profiles. Its durability, reliability, and low-maintenance design make it ideal for high-volume production in furniture, interior, and woodworking industries.
Key Technical Features
Versatile Manufacturing Solutions
Our C.N.C Router & Laser Machine is engineered for extreme versatility, providing high-precision solutions across a diverse range of industrial sectors from specialized manufacturing to large-scale production.
Core Applications
Optimized for diverse industrial uses, from furniture components to structural panels.
Furniture component manufacturing
Laminated furniture panels
Cabinet & interior panels
Cabinet doors & decorative mouldings
Laminated panel cutting
